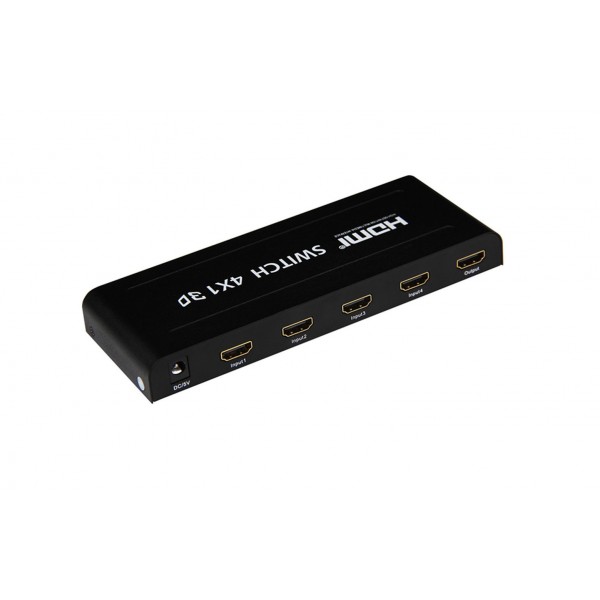

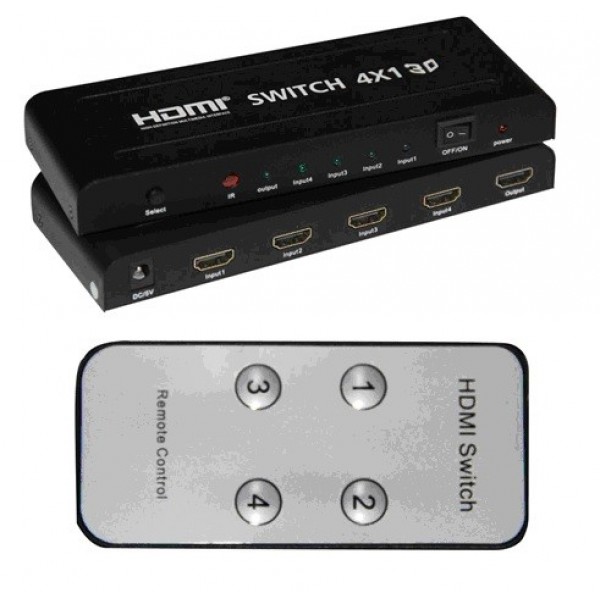

PRO2096-4: High Performance HDMI Switcher, 4 In 1 Out
High Performance HDMI Switcher, 4 In 1 Out
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
High Performance 4 Ports HDMI Switcher

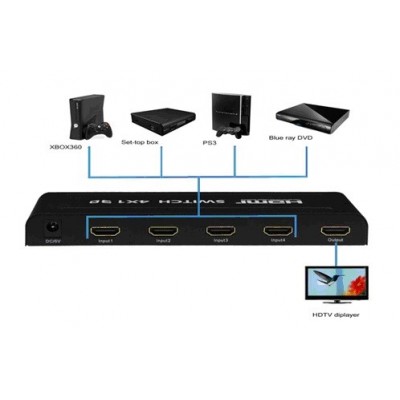

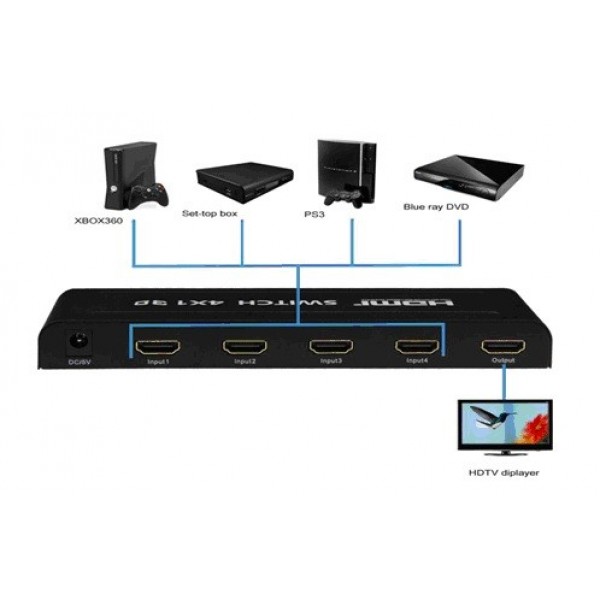

This is an intelligent HDMI 4X1 Switcher. It allows four HDMI source devices switched into one HD monitor or projector. Adopted touch button design lets you enjoy the high technology and easy switching life. This intelligent Switcher has four input ports and one output port on the back panel. This is more convenient for users to connect source devices.
Features
Support highest video resolution 1080p/60Hz (480p 560p 720p 1080p)
Support 3D video format
Support 2.25Gbps data rate for tmds clock up to 225MHz
Support 24/30/36 bit deep color
Support AWG26 HDMI standard cable (Input 15M, Output 25M)
Need 5V/1A power adapter
Specifications
HDMI resolution 1080p 60fps
Support video format 3D
Support video color format 24/30/36 bit deep color
Support audio format DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth 225MHz
Max band rate 2.25Gbps
Input cable distance ≤15m AWG26 HDMI standard cable
Output cable distance ≤25m AWG26 HDMI standard cable
Max working current 250mA
Power adapter format..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +55℃)
Dimension (L x W x H) 178x67x20 (mm)
Weight 220g
