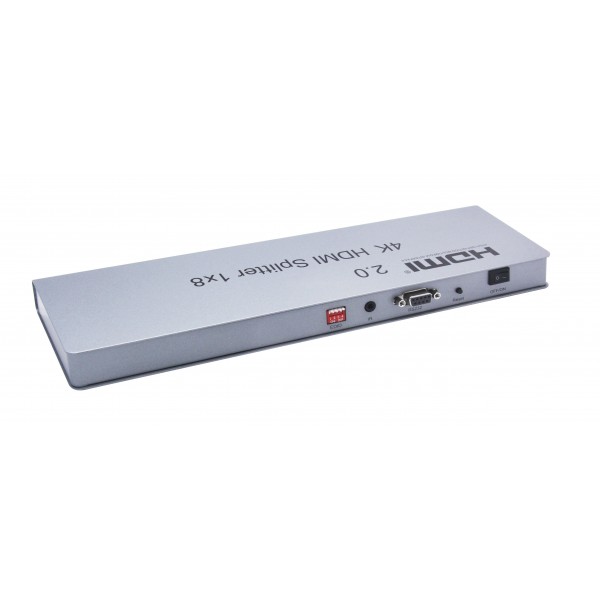

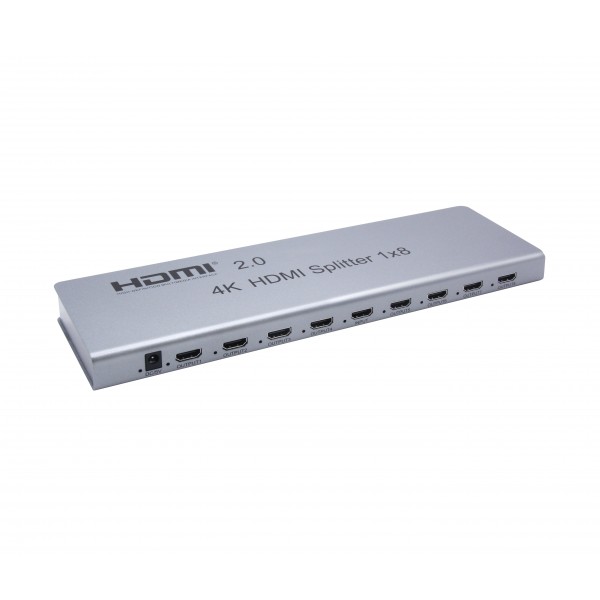

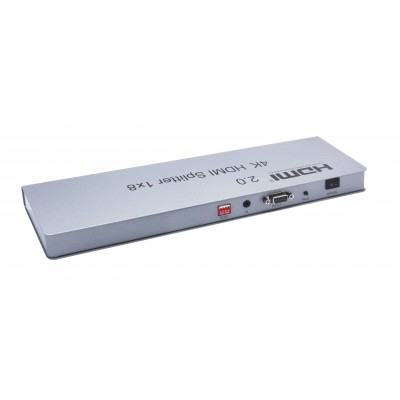

PRO2092-08: V2.0/4K/60HZ HDMI Splitter, 1In-8 Outs W/IR Extensio
This 1x8 HDMI Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. it can be placed at the end of a long HDMI cable to regenerate the HDMI sign
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
This hdmi splitter can be up to 3840X2160/60Hz. It supports EDID management function, comes with eight kinds of EDID mode,
the users can choose according to their own needs. In addition, this product is also built-in IR
extension function, can work with our hdmi 2.0 repeater which has IR-RX receiving the IR
command to control the source.
FEATURES
? Support HDMI V2.0 ,HDCP2.2
? Support HDR
? Support 3D video format
? Support CEC(only ouput 1)
? Support high resolution up to 3840X2160/60Hz
? Support highest rate of 6 G and TMDS clock can be up to 600 MHz
? Support 8/10/12 bit deep color
? Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
? Support one single HDMI source?accessing to multiple HDMI sinks, the source can be DVD
player, A/V receiver, set top box and etc.
? Built-in IR extension function
? Remote control the source ? via the IR-RX of HDMI repeater which splitter works with to receive the IR command)
? Support serial port online upgrade
? Support EDID management
? Support output down scaling

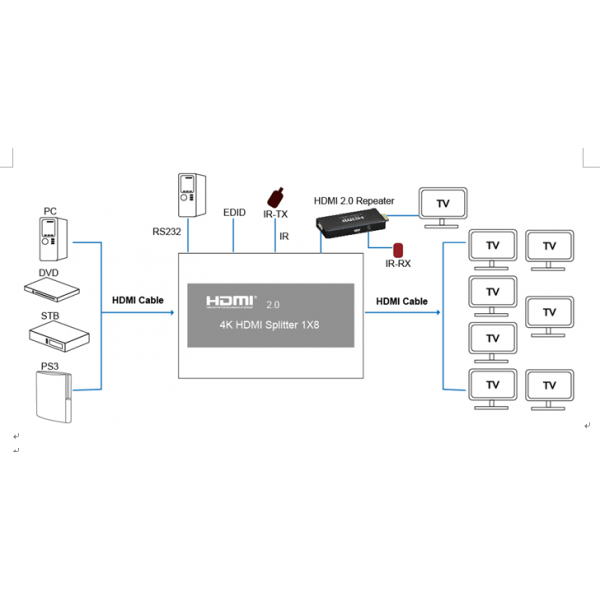

IR extension description:
There is an IR TX Extension port, it can work with an optional HDMI 2.0 repeater which works as
IR-RX and IR extended via HDMI cable
