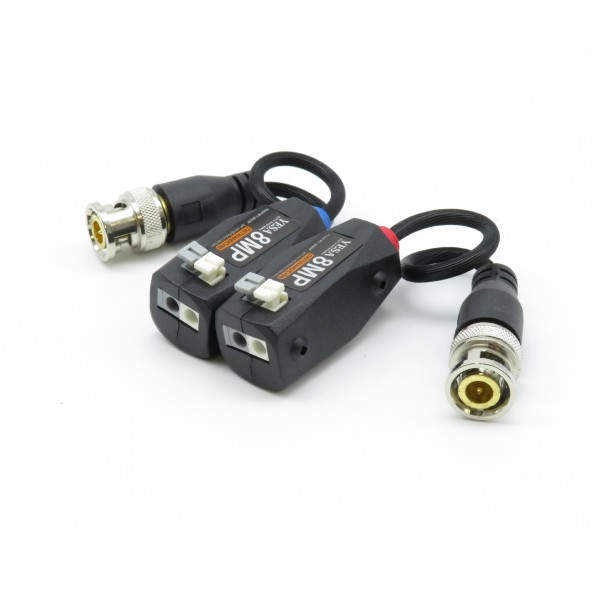

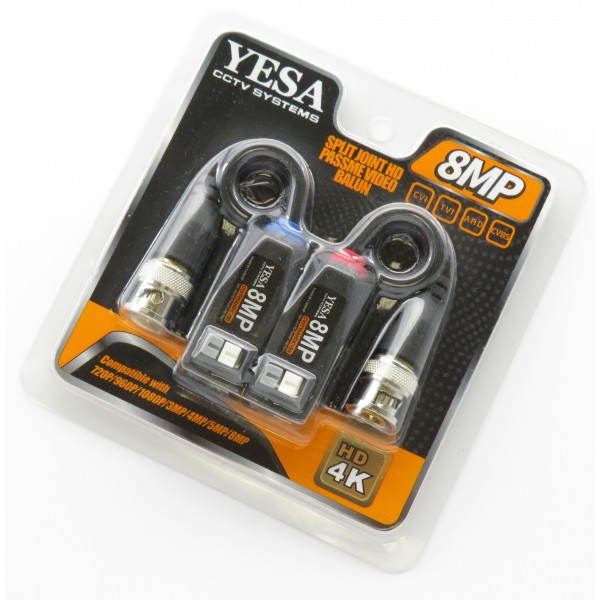

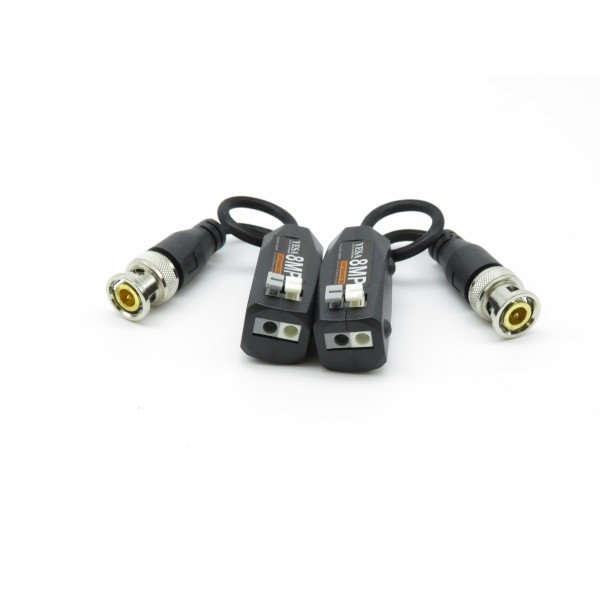

BCC4204MP: Push pin type 8MP Passive HD Video Balun, 2KV protect
1-CH 8MP Passive Video Balun Transceiver Push Pin Type with Pigtail, 2KV Super protection,1-Set, Colour Video up to 400M for CVBS camera, HD AHD CVI TVI CVBS CCTV Via Twisted Pairs BNC Video Balun for CCTV security Camera
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
This balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable.
It is compatible with al HD-TVI, HD-CVI and CVBS analog
cameras.
It has a mini coax pigtail lead which allows quick mounting onto fixed cameras.
Allows in-camera mounting in most dome cameras, it eliminates costly and bulky coaxial cable
Features
No Power required
Stackable for neat installation
ABS engineering plastic housing
Push Pin Terminal Connection
Exceptional interference rejection
60db Crosstalk and noise immunity
Lightening protection design Grade:III
Wave filter design Anti-static deign
Real-time transmission over UTP cat5e/6
Compatible with all CVI/TVI/AHD/CVBS analog cameras
Compatible with 720P/960P/1080P,3MP,4MP,5MP,8MP
Built-in solid state TVS (Transient voltage suppressor) for surge protection
2KV Super protection
