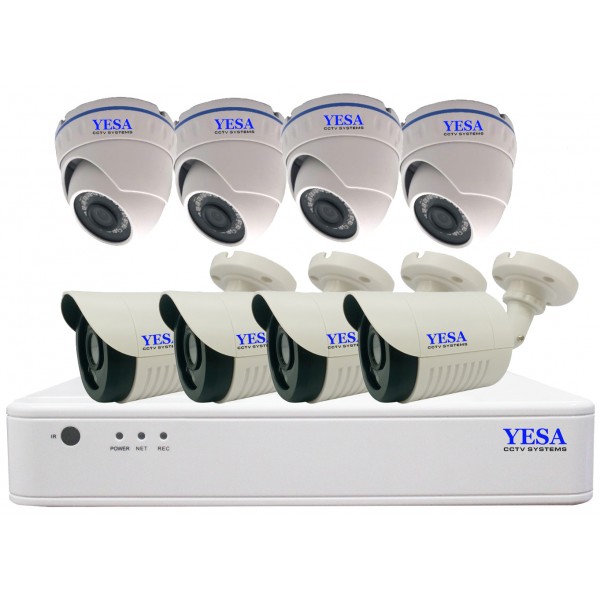

YCC1011AHD: 8 Channels AHD 2MP XVR KIT

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

-

+

Add to Favorite Items Print

Description

Additional information

Camera
Video Output Mode	AHD/CVI/TVI/CVBS
Image device	1/2.8" HD cmos
TV System	PAL/NTSC
Image Resolution	2MP
Effective Pixels	1920*1080
Scanning System	Progressive Scan
Synchronization	Internal
S/N Ratio	≥50dB
Lens
Focus Length	3.6mm MTV lens
OPERATIONAL
Day/Night	AUTO（ICR)
Backlight Compensation	AUTO
Gain Control	AUTO
White Balance	AUTO / MANUAL
Electronic Shutter	1/25s~1/50,000s , 1/30s~1/60,000s
Infrared LED	18 SMD LEDs
Infrared Distance	10~20M
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Operation Temperature	-10℃ ~ +50℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Housing	dome：metal &bullet：plastic
Noise Reduction	3DNR
Picture Adjustment	YES
WDR	YES
OSD Support	YES
General
Power Source	DC12V±10%
XVR
CPU/AD	HI3520D(V300)+2826
Operation System	Embedded Linux
Video&Audio Input	Video Input	8CH
		CVBS、TVI、AHD、CVI Signal adaptive Campatible，Access to the Optional IP Cameras
		BNC Interface（1.0Vp-p,75ohms）
		TVI4MP/AHD4MP/TVI3MP/AHD3MP/CVI3MP/TVI1080P/TVI720P/AHD1080P/AHD720P/CVI1080P/CVI720P/960H/D1
		Support TVI/AHD Camera Reverse Control（UTC）
	Network Video	32Mbps
		Up to 2048*1536@30FPS
	Audio Input	1CH，RCA interface (2Vpp,1Kohms)
	Bidirectional Talk	1way voice intercom reuse
Video&Audio Output	CVBS Output	1CH,BNC Interface（1.0Vp-p,75ohms）
	VGA	1CH,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
	HDMI	Standard 1.3a
		1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional
	Audio Output	1CH,RCA Interface (Line out,2Vpp,300ohms)
Intelligent Analysis	1CH Face detection or 8CH Perimeter detection

Video Encoding
Encoding Resolution
Max Encoding Ability
Video Frame Rate
Encoding Control
Video Bit Rate
Stream Type
Audio Encoding
Audio Bit Rate
Dual stream
Video & Audio Decoding	Video Decoding	H.264 High Profile@Level4.2
	Synchronous Playback	Up to 8CH
	Max Decoding Ability	8CH 720P@25FPS or 4CH 2MP@12FPS
Other Function	Bidirectional Talk	Two-Way Voice Intercom Function
	Motion Detection	Zones :396 (22×18)Detection Zones ；Variable Sensitivity Levels
	Regional Block	Each Channel Support 4 Regional Block Pieces
	Picture Capture	Support JPEG Capture
HDD	SATA	1 SATA interface
	Max Capacity	Unlimited
External Interface	Network Interface	1RJ45;10M/100M adaptive Ethernet interface
	USB	2USB*2.0 Interfaces
	RS-485	N/A
Structure	Dimensions	25023545mm

	Electrical Properties	Power	DC +12V
Working Temperature		0℃--＋55℃
Working Humidity		10％--90％
Consumption		6W(Without HDD)
